Clear-Vu Doors — Commercial Clear PVC Swinging Doors

Manufactured by CCI Industries / CoolCurtain, Clear-Vu Doors feature flexible, transparent PVC panels designed for commercial coolers, freezers, and high-traffic applications.

  • Clear visibility for safer two-way traffic
  • Durable 304 stainless steel hardware
  • Self-closing gravity hinge system
  • Opens with less than one pound of pressure
  • Custom manufactured to fit your opening


Guaranteed Secure Payments

Purchase Options

Clear-Vu Doors are commercial-grade clear PVC swinging doors manufactured by CCI Industries / CoolCurtain in the USA. Designed for walk-in coolers, freezers, commercial kitchens, and cold storage facilities, these flexible traffic doors provide clear visibility, convenient two-way access, and a barrier that helps limit temperature loss between spaces.

Unlike conventional PVC strip curtains, Clear-Vu Doors use full flexible PVC panels that swing open and automatically return toward the closed position. Each system is custom fabricated to fit the opening and application.

Why Choose Clear-Vu PVC Swinging Doors?

Clear Visibility

Transparent PVC panels provide a line of sight through the doorway.

Easy Two-Way Access

Standard panels swing 180 degrees and open with less than one pound of pressure.

Automatic Closing

Gravity hinges return panels toward the closed position after passage.

Cold-Storage Applications

Suitable for specified cooler and freezer applications down to -20°F.

Custom Fabrication

Manufactured to fit the opening, traffic conditions, and selected configuration.

Reduced Interference

Full swinging panels do not separate into individual strips or drag across carried items.

Clear-Vu Door Technical Specifications

Specification Details
Manufacturer CCI Industries / CoolCurtain
Door material Flexible, transparent PVC
Available PVC thickness 0.080 inch or 0.125 inch
Temperature application Cooler and freezer applications down to -20°F
Standard hinge system Self-closing gravity hinge
Standard panel swing 180 degrees
Opening force Less than one pound
Standard gravity-hinge opening limits Up to 48 inches wide and 84 inches high
Alternative hinge option 270-degree hinge system for additional clearance
Configuration Custom-made panels; double-panel configurations available
Optional protection ABS impact plates
Hinge warranty 10-year rust-proof warranty
Manufacturing defects 90-day warranty from shipping date

Opening limits above apply to the standard gravity hinge system. Contact CoolCurtain to confirm material, hardware, and sizing requirements for your application.

Commercial Applications for Clear PVC Swinging Doors

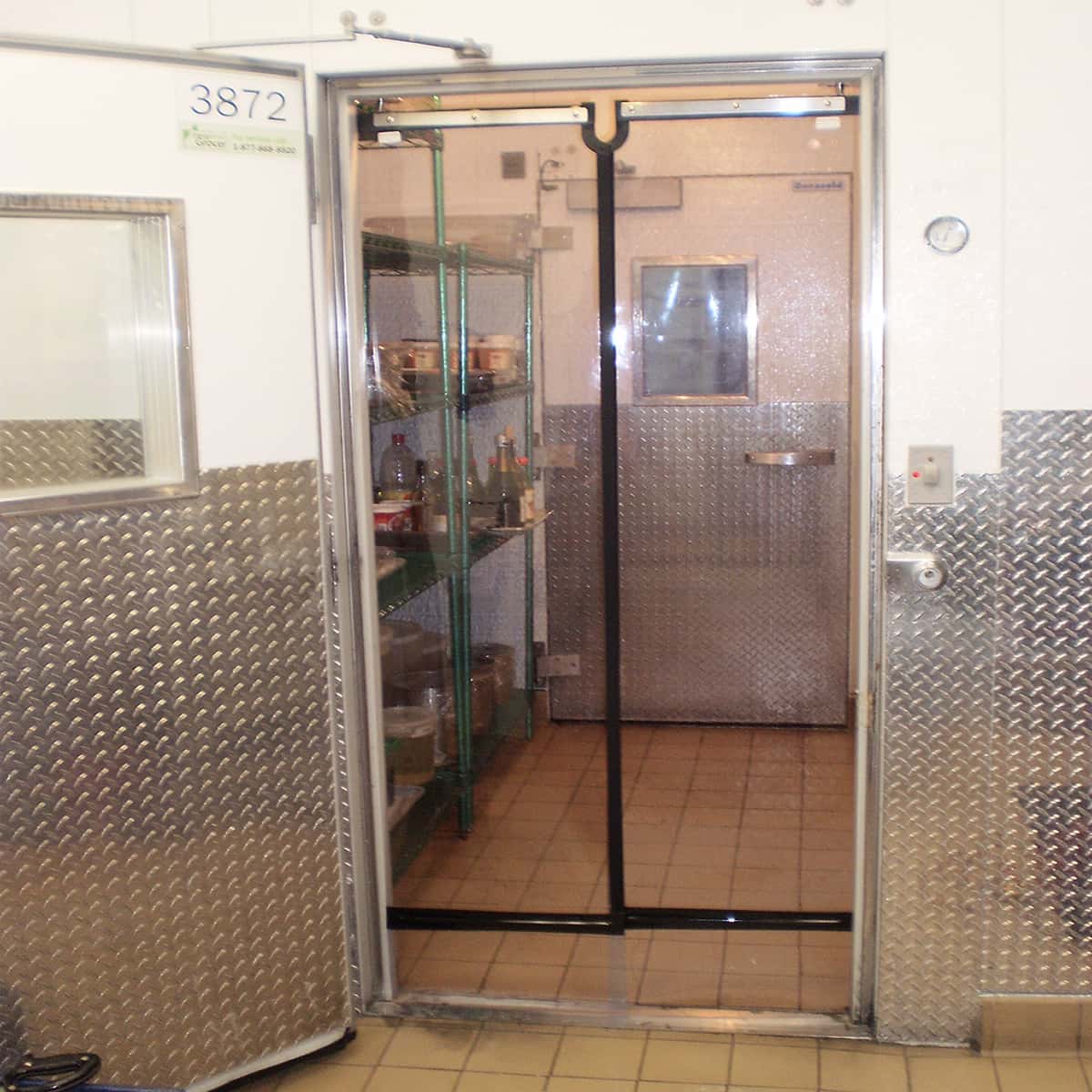

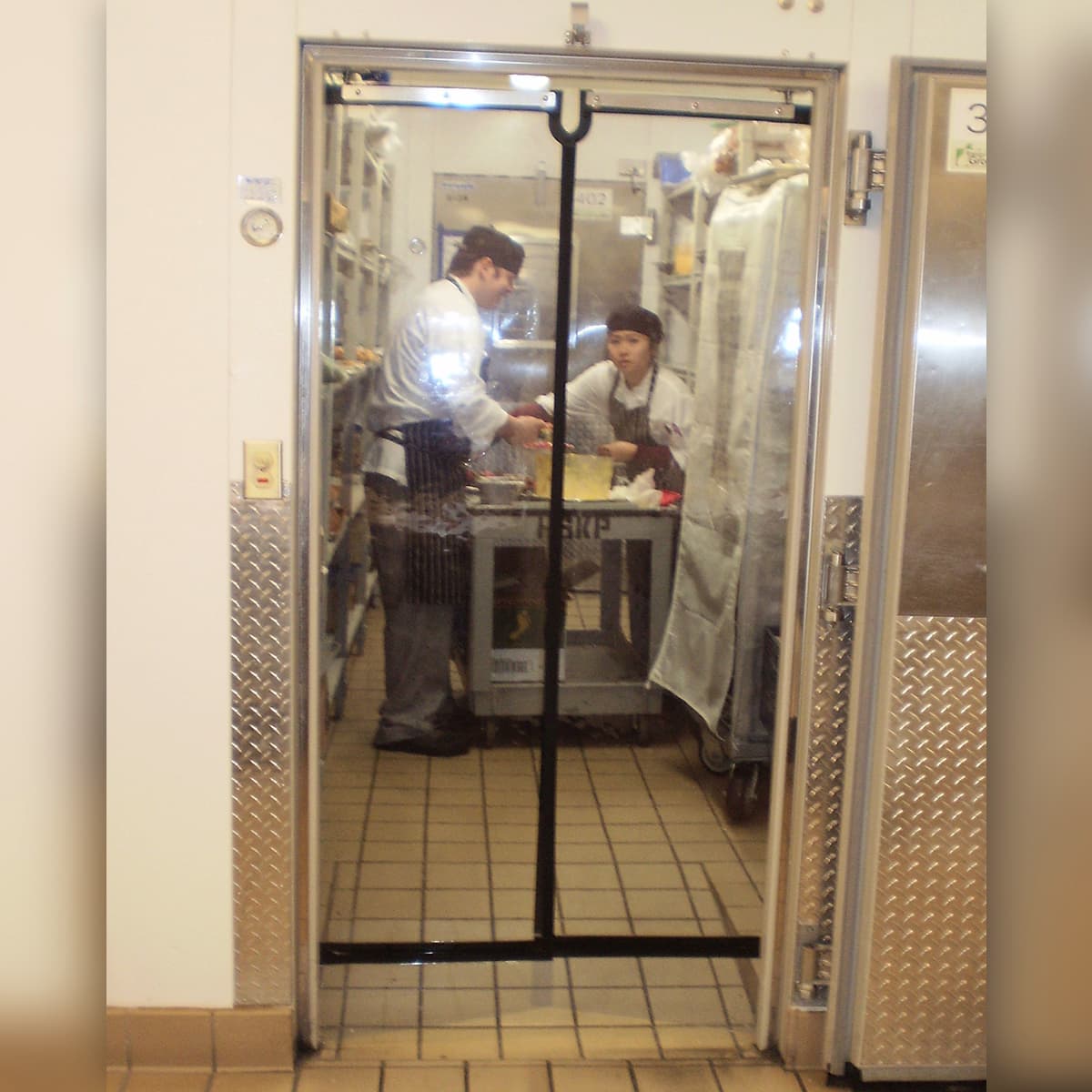

Walk-In Coolers and Refrigerated Rooms

Clear-Vu Doors provide a flexible secondary barrier for refrigerated openings with frequent employee access. Transparent panels help employees see approaching traffic while the self-closing design helps reduce the exchange of conditioned and ambient air.

Walk-In Freezers and Cold Storage

For suitable freezer applications down to -20°F, Clear-Vu Doors provide access while helping separate temperature-controlled spaces. Confirm the required PVC thickness and hardware configuration before ordering.

Commercial Kitchens and Food Processing Facilities

Transparent swinging panels can help separate compatible work areas while allowing staff to see through the opening. Door suitability should be evaluated against traffic conditions, cleaning requirements, and applicable facility standards.

Grocery Stores and Supermarkets

Clear-Vu Doors are an option for back-of-house refrigerated access points and other suitable commercial openings where visibility and frequent passage are important.

Clear-Vu Swinging Doors vs. PVC Strip Curtains

Both systems can help separate spaces and reduce unwanted airflow, but they operate differently. The right choice depends on opening size, traffic, operating temperature, and how equipment moves through the doorway.

Feature Clear-Vu Swinging Doors PVC Strip Curtains
Door design Full flexible swinging panels Individual overlapping PVC strips
Passage Panels swing aside Traffic pushes through hanging strips
Closing action Gravity hinge returns panels Strips hang back into position
Visibility Clear panel provides a continuous view Visibility depends on strip material and condition
Best selection factors Frequent personnel passage and compatible opening sizes Flexible opening coverage and traffic-specific strip configurations

For alternative doorway barriers, explore our Cooler Strip Doors and Freezer Strip Doors.

Available Hinge Systems

Standard Gravity Hinges

The standard hinge system supports a 180-degree panel swing and automatically returns the door toward the closed position. The manufacturer specifies less than one pound of opening force. Stainless steel and noncorrosive hinge-material options are available.

Optional 270-Degree Hinge System

An optional 270-degree hinge system offers additional swing clearance and is mounted above the opening. This configuration can help accommodate larger carried items and reduce stress on the flexible PVC panels. Consult CoolCurtain for configuration compatibility.

Frequently Asked Questions

What are Clear-Vu Doors made of?

Clear-Vu Doors are manufactured from flexible, transparent PVC panels. Available thicknesses include 0.080 inch and 0.125 inch, depending on the selected configuration.

Can Clear-Vu Doors be used in a freezer?

Yes. Manufacturer specifications identify applications as low as -20°F. The appropriate configuration should be confirmed for the opening and operating conditions.

Do Clear-Vu Doors swing in both directions?

Yes. The standard gravity-hinge system allows panels to swing 180 degrees. An optional 270-degree hinge system is also available.

Are Clear-Vu Doors custom-made?

Yes. CCI Industries manufactures Clear-Vu Door systems to customer specifications. Opening dimensions, hinge selection, PVC thickness, and optional impact protection should be considered when ordering.

Who manufactures Clear-Vu Doors?

Clear-Vu Doors are manufactured by CCI Industries / CoolCurtain in the United States. Customers can order through CoolCurtain and contact the manufacturer for product selection assistance.

Order Clear-Vu Doors Direct from the Manufacturer

Choose your opening dimensions and available product options using the purchase controls above. For assistance with sizing, hinge selection, or a custom application, contact CCI Industries / CoolCurtain at (800) 854-5719.
